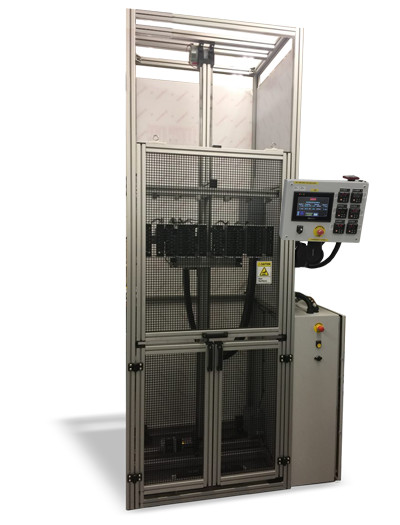

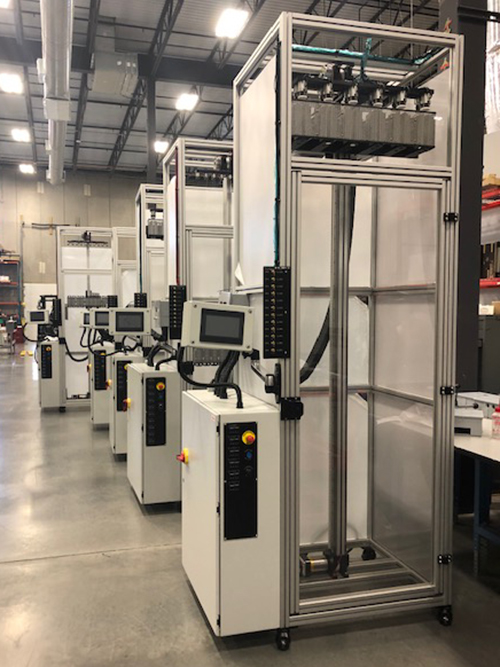

Reflow Clam Shell
The CT Reflow Clam machine differs from the CT Reflow Chamber machine because of its ability to be programmed to skip over various parts of a catheter assembly, therefore removing heat from designated parts of the catheter.
Description
The CT Reflow Clam uses a split die design that opens and closes around the needed parts where heat is necessary. This is especially advantageous should a catheter assembly have sensitive sensors or other materials in it where heat should not be applied. Additional features can be added to the Clam Shell Chamber including: Operator safety precautions, Ease conversion to CT STRETCHER, Loading elevators for operators to load assemblies at lower levels.
Specifications
- Chamber Options:
- 8 or 10 Chambers
- Height Options:
- 89″, 100″, 108″, 120″, 144″
- 5″ Chamber length (STD size)
- Chambers interchangeable – hot or cold
- 2 pins per screw
- Per changeover (less than 10 mins)
- Low maintenance required
- Crated weight 900-1000 lbs (STD)
- Clam shell 1200 lbs. 3 phase
- 208-240 VAC 30 AMP
- Air pressure – minimum 90 PSI
- Easy setup
Options
- High Temp Package
- Loading Elevator
- Light Curtain
- Safety Pull Cord
- Door Interlock
- Replacement PTFE
- Replacement Chambers:
- .200 – .375 Dia
- .187 Dia
- .376 – .500 Dia
- .125 Dia
