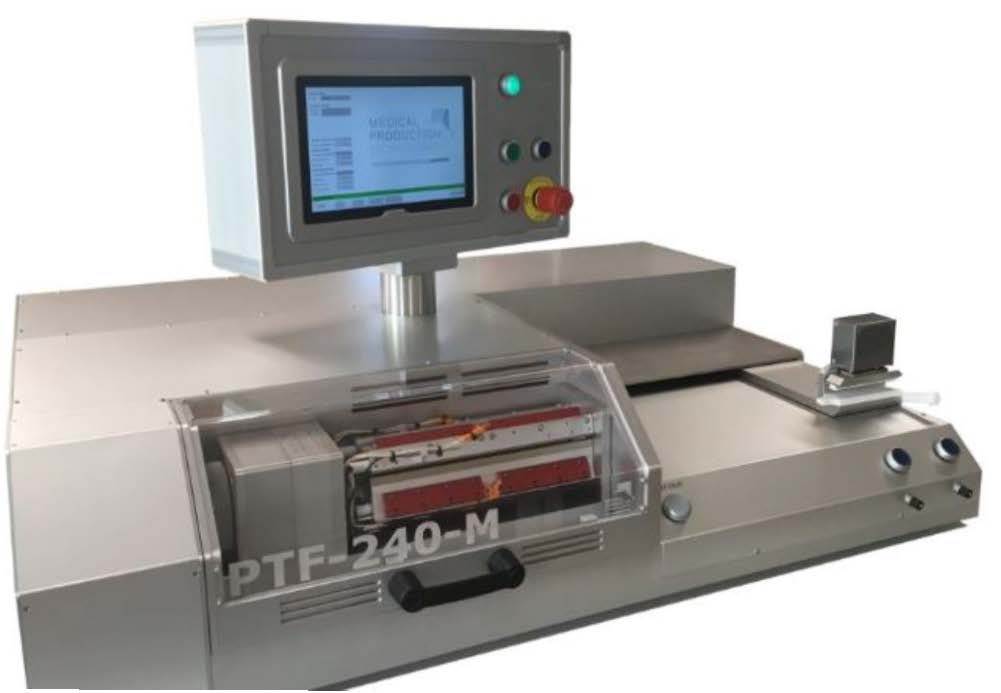

PTF-240-M
Description
Robust and stable catheter balloon pleat and fold machine designed to provide the user with an effective and reliable production machine for pleating and folding catheter balloon products with minimal cost of ownership.
Specifications
- 10” color touch panel interface with parameter setting and recipe
control. - Servo controlled zero-gap MPT Europe BV design fold head with
stainless tool steel blades and high-wear resistant low friction
coating. - Innovative design for quickly exchanging the pleater setup from
3, 4, 5 or 6 pleats. - Double inflation / deflation ports with programmable pressure
over the software recipes ownership. - Easy to use user interface software with recipe control. Barcode
scanners support as standard. - Fold head heating is standard and optionally the pleater modules
can be fitted with a heating system. - The design is optimized for use in cleanrooms and can be very
easily wiped and cleaned due to the smooth and closed surfaces.
Technical Specs
Balloon pleater & fold head size | 240 mm length maximum opening 30 mm |
Maximum balloon length | Approx. 220 mm (depending on cone angles) |
Number of pleats | 3, 4, 5 or 6 pleats with pre-shape |
Heating on the pleaters | Optional. Maximum temperature 90 °C |
Heating on the fold head | Standard. Maximum temperature 90 °C |
Fold head control | 0.1 mm – 30mm servo controlled +/- 0.02 mm @ 100N accuracy Dynamic Diameter Compensation (DCC) available 1 point fully automated diameter calibration 1000 N radial force max. |
Pleat head control | Servo pneumatic optionally servo controlled with CW/CCW pleater option |
Product inflation/deflation | 2 ports (max. 6 bar / minimum -0.8 bar) |
GUI | 10” colour touch panel |
Control software | Recipe based Password levels (operator, engineer, calibrator) Remote support option |
Ethernet | 2x |
USB | 4x |
Required air pressure | 7 bar minimum |
Power supply | 115 / 240 VAC / 0.8 kW |
Safety systems | Covers with coded magnet and safety PLC circuit |
