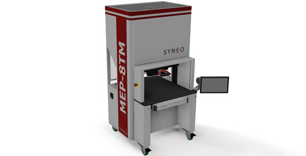

MEP-8TM/8TL

Key Features

Semi-automated system for small to large PCB’s, low to medium volume; low to high mix.
MEP-8TM: Max connector size: 275mm x 50mm, Board Size: 680mm x 910mm
MEP-8TL: Max connector size: 300mm x 50mm, Board Size: 830mm x 1060mm

Specifications

MEP-8TM: Max PCB size 680 x 910mm (27″ x 36″)
MEP-8TL: Max PCB size 830 x 1060mm (33″ x 42″)
Max Connector Size: 279 x 38mm (11″ x 1.5″)
Machine Force: 8 Tons
MEP-8TM Dimensions: 980x930x1870mm (39″x37″x74″)
MEP-8TL Dimensions: 980x930x1870mm (39″x37″x74″)
Load Cell: 4
Estimated Cycle Time: 3-5 sec
Pressing Travel Distance: 5.3″ (134.6mm)
Force System Resolution: 0 to 800 Lbf. < 0.05 Lbf. 800 Lbs. to 16,000 Lbf < 0.75 Lbf
Force System Accuracy: 0 to 250 Lbf: <10 Lbf of actual reading. 250 Lbf to 10,000 Lbf, 5% of actual reading
Pressing Head Max Speed: 12mm/s
Pressing Head Min Speed: 0.025 mm
Electric Supply: 208/240 VAC, 1ph, 15A, 50/60Hz
Air Supply: 80psi (0.6 Mpa) dry air
